Fixation worthbringing into the room.

Titanium plating for sternal closure and rib fixation, selected and supported by Kingfisher Medical.

See the systems

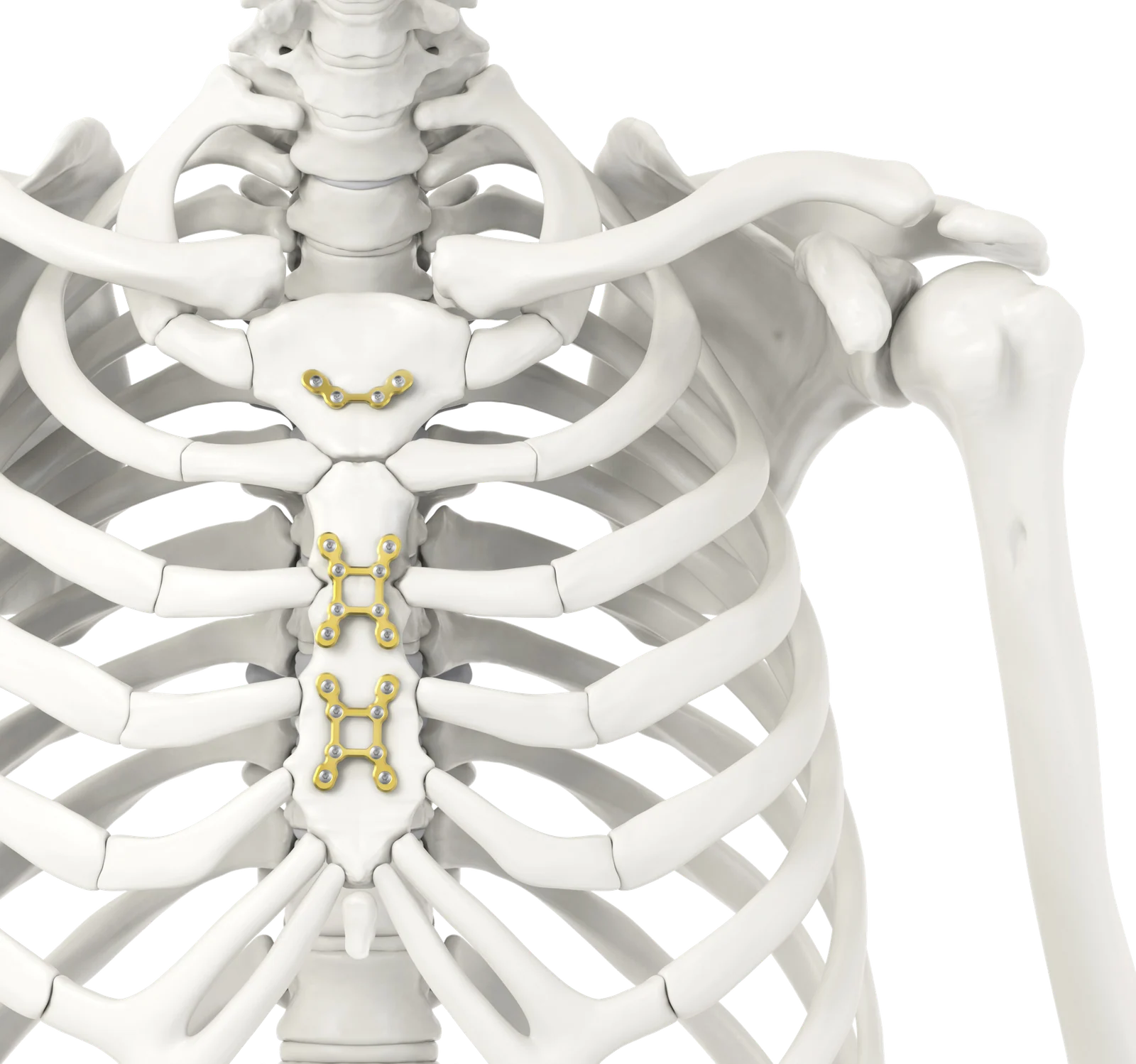

Sternal plates fixed on the manubrium and the sternal body

We don't need more products. We need better ones.

Built for the close.

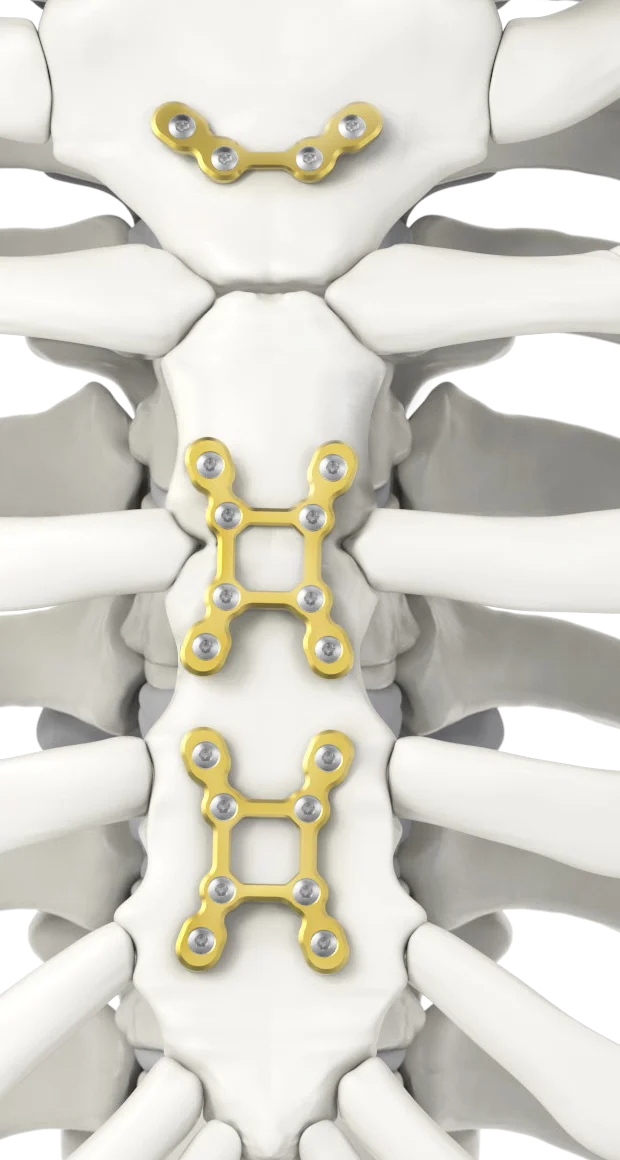

An L plate on the manubrium and two X plates on the sternal body

Rigid fixation.

Titanium plates for sternal closure after median sternotomy.

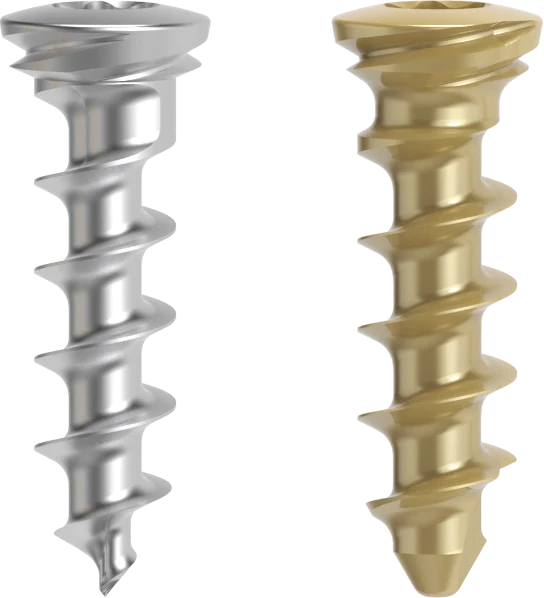

A 2.4 mm locking screw in silver and a 2.7 mm locking screw in gold

Locking screws.

2.4 mm locking screws hold the construct firmly in place.

The anterior chest wall

Rib and chest wall.

Plates for rib fixation and chest wall repair.

Square plate, 4 holes
Square4 holes

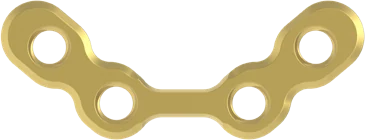

L plate, 4 holes
L4 holes

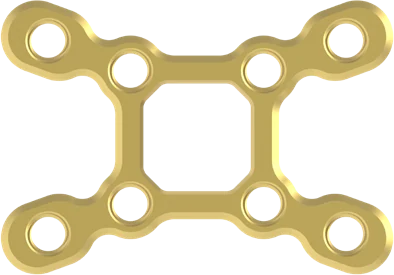

X plate, 8 holes
X8 holes

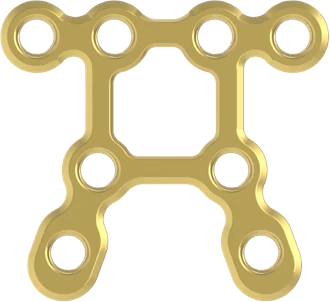

JL plate, 8 holes
JL8 holes

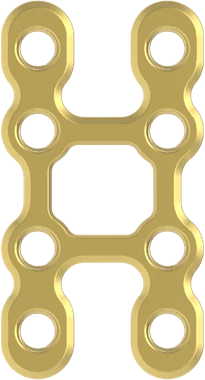

Ladder, short plate, 8 holes
Ladder, short8 holes

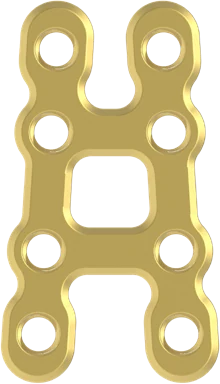

C ladder plate, 8 holes
C ladder8 holes

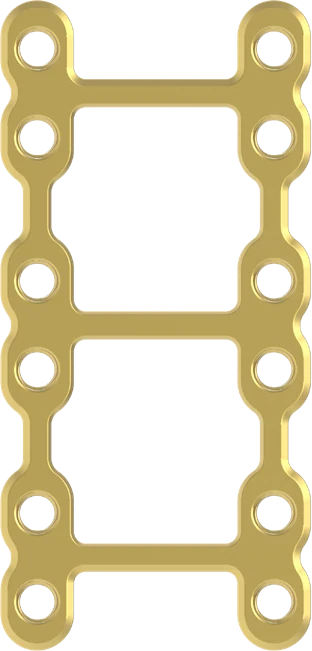

Ladder, wide plate, 12 holes
Ladder, wide12 holes

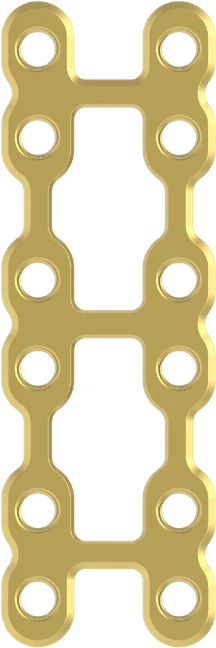

Ladder, narrow plate, 12 holes
Ladder, narrow12 holes

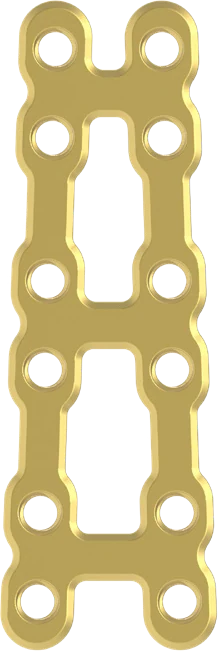

C ladder plate, 12 holes
C ladder12 holes
C straight plate, 4 holes
C straight4 holes
C straight plate, 6 holes
C straight6 holes
C straight plate, 8 holes
C straight8 holes
C straight plate, 20 holes
C straight20 holes

How it goes in.

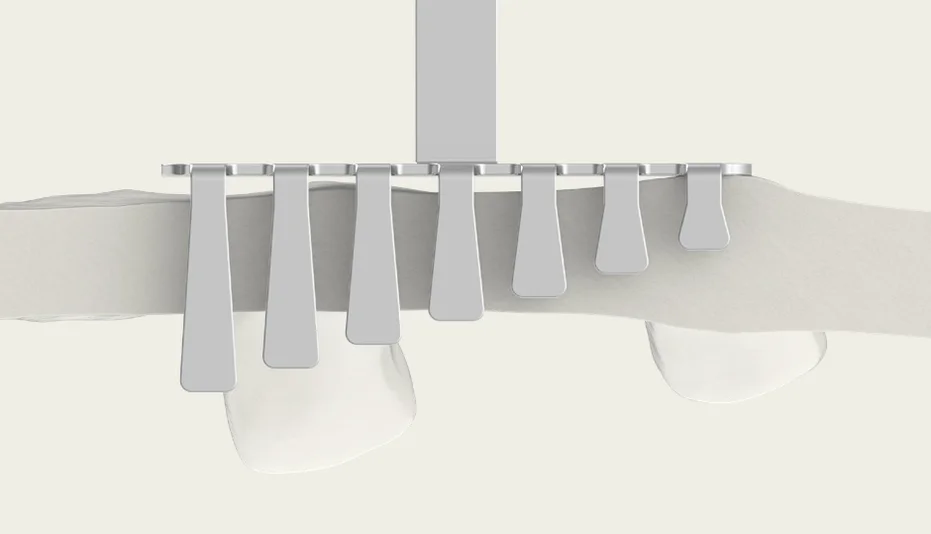

  1. Step 1: measureStep 1

    Measure.

    Measure the sternal depth at three points: the manubrium, the body and the xiphoid.

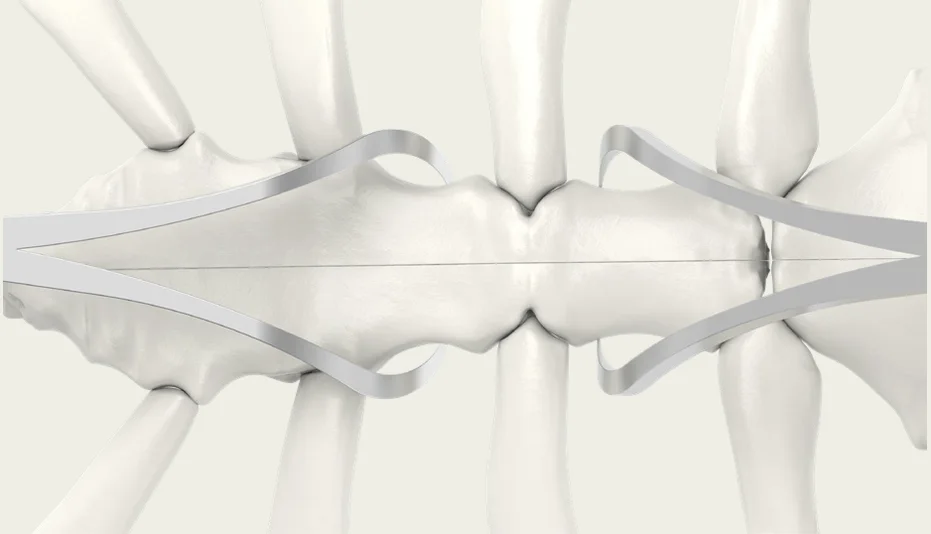

  2. Step 2: reduceStep 2

    Reduce.

    Wire the manubrium and xiphoid, then bring the mid-body together with reduction forceps.

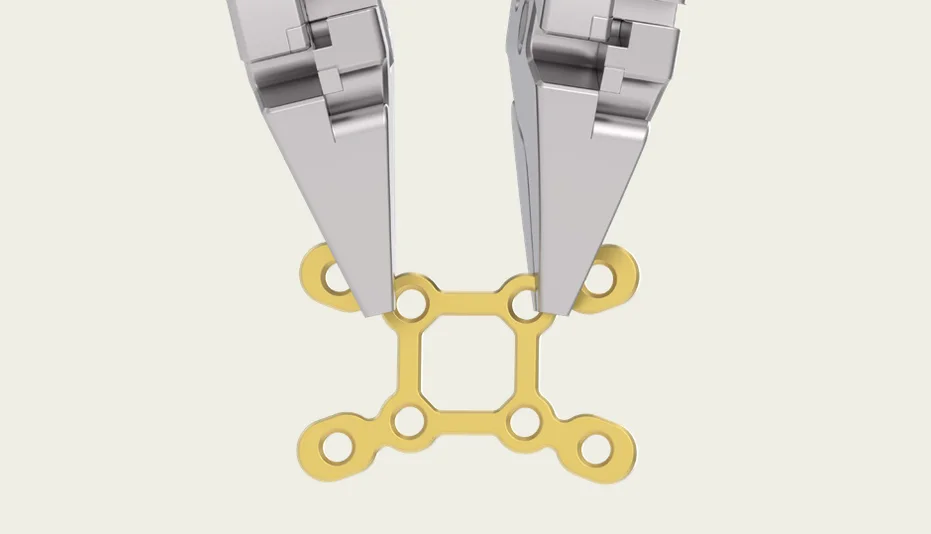

  3. Step 3: shapeStep 3

    Shape.

    The plates are two-sided. If needed, bend the plate to match the bone.

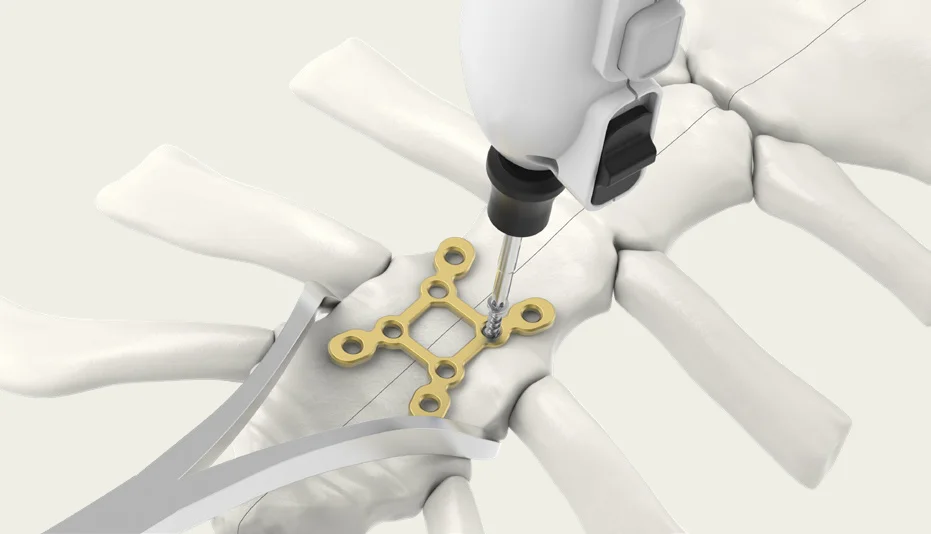

  4. Step 4: insertStep 4

    Insert.

    Insert the screws. The Smarto driver is recommended for quick insertion.

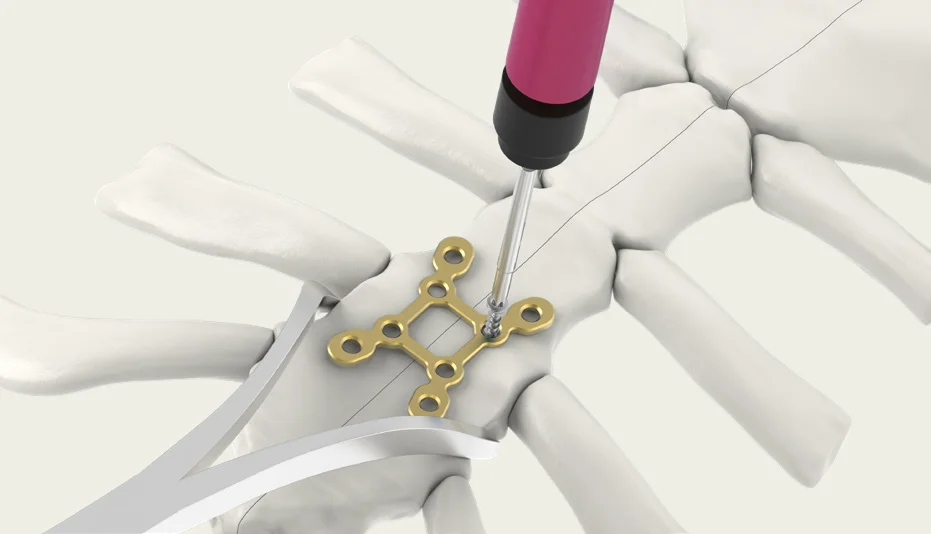

  5. Step 5: tightenStep 5

    Tighten.

    Fully tighten with the screw driver handle once the other screws are in place.

From the surgical technique. Always follow the instructions for use.

In the set.

Depth gauge
Depth gauge

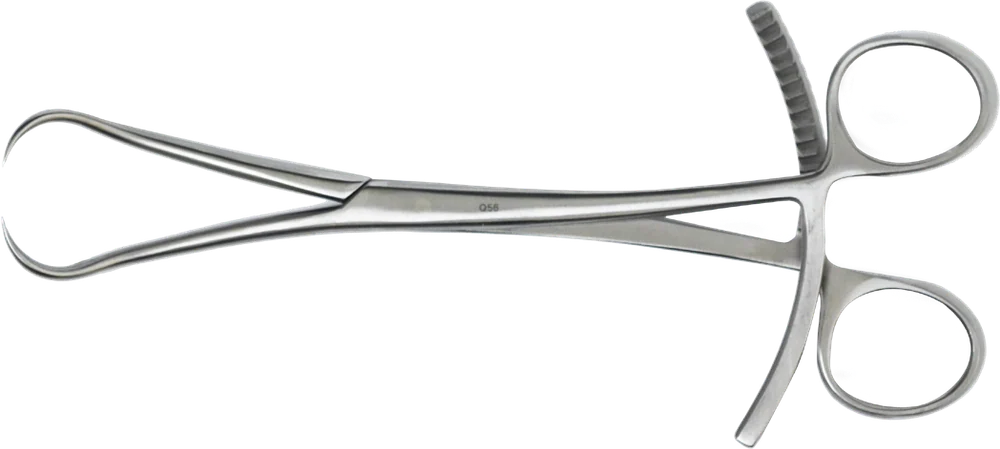

Bone reposition forceps
Bone reposition forceps

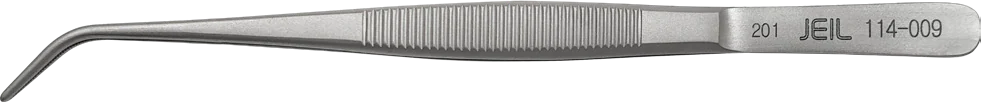

Plate holding forceps
Plate holding forceps

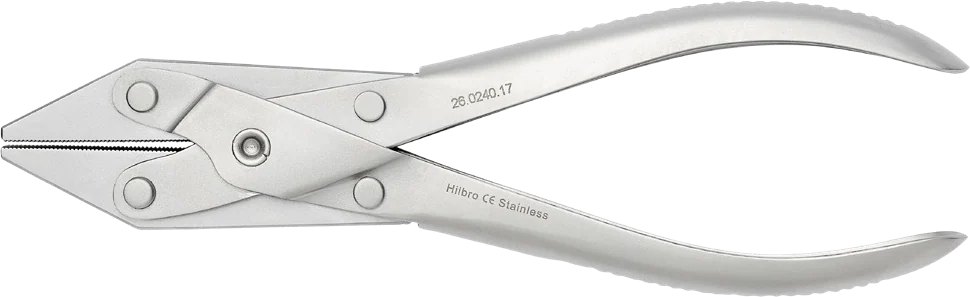

Plate bender
Plate bender

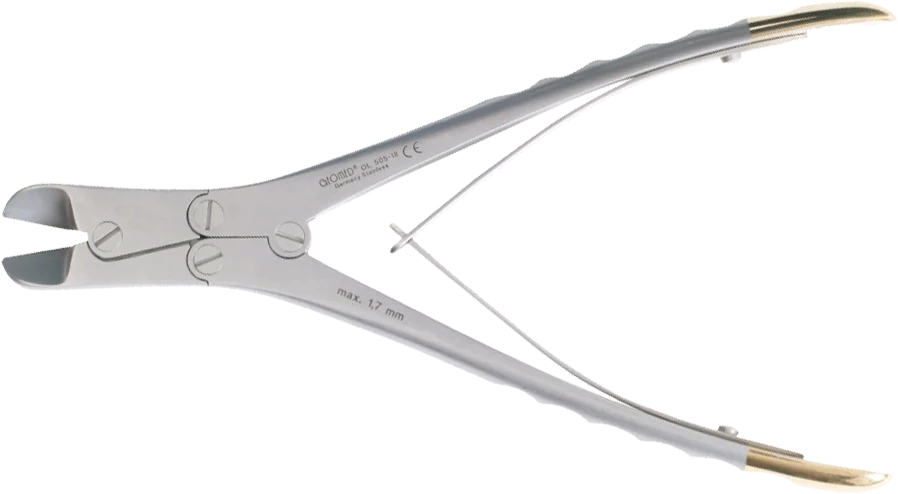

Plate cutter
Plate cutter
Driver for T8, 70 mm
Driver for T8, 70 mm

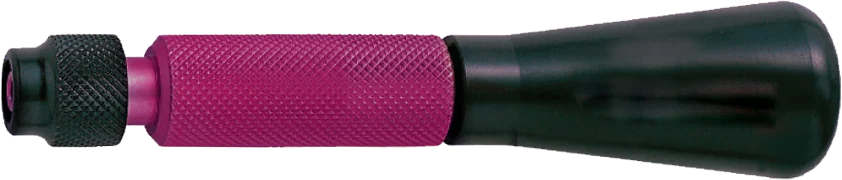

Screw driver handle
Screw driver handle

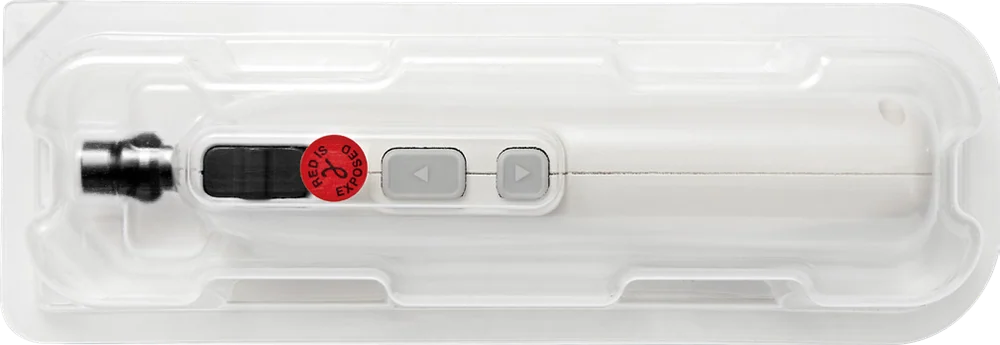

Smarto battery-powered driver
Smarto battery-powered driver

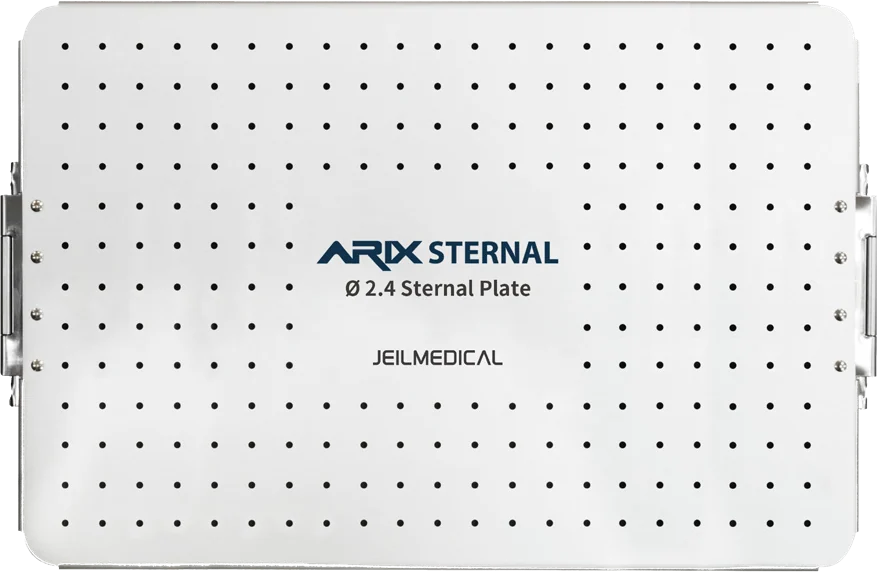

The sterilizable case, closed
Sterilizable case

Two trays. One standard.

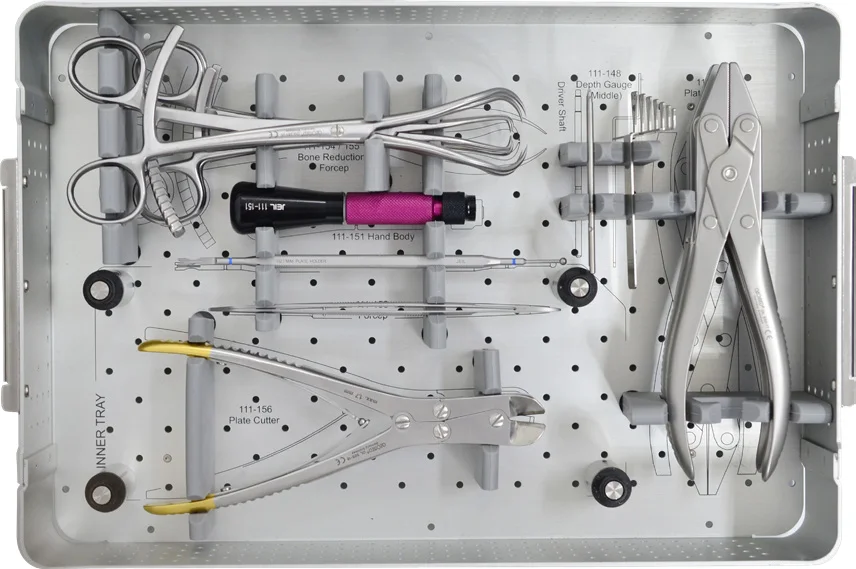

The sternal closure set, open: plates, screws and instruments in a sterilizable caseTray one

Sternal closure set

Titanium sternal plates and 2.4 mm locking screws, organized in a sterilizable case.

Tray two

Rib fixation set

Titanium plates and 2.4 mm locking screws for rib fixation and chest wall repair, in a sterilizable case.

Evaluation sets are available for trial in your hospital.

Try itin your OR.
