Cranialplates.

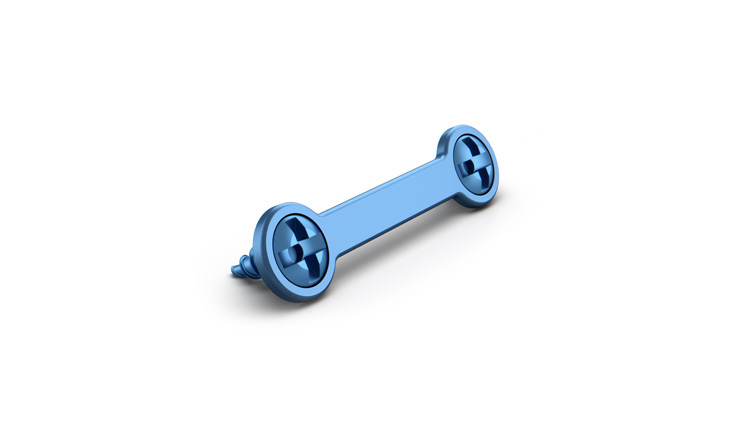

Low-profile titanium plates and screws for cranial bone flap fixation and skull reconstruction.
Low profile.
Plates from 0.3 to 0.6 mm thick contour to the skull and are only minimally palpable.
Secure fixation.
Self-tapping screws bite readily, by hand or power driver, for lasting fixation.
OR ready.
A complete, color-coded set with instruments in a sterilizable tray, ready for the OR.
Holds the flap. Sits low.
Cranial plates are part of a neurofixation system used to close skull fractures and trepanation holes and to reattach bone flaps after surgery for brain injuries, tumors and abscesses. Titanium-grade construction gives biocompatibility, corrosion resistance and reliable long-term fixation, while low-profile plates and flat screw heads leave a surface that is only minimally palpable, for an excellent cosmetic result.
Low profile, high performance

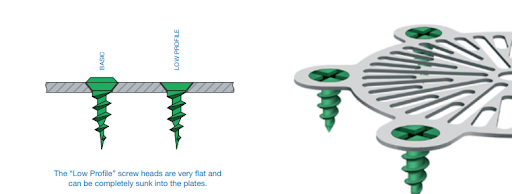

Plates are 0.3 mm to 0.6 mm thick, balancing contourability with strength. The low-profile plates allow fixation matched to the bone contour in cranial regions with little soft-tissue coverage. The screw heads are very flat and can be sunk completely into the plate, so the surface created is only minimally palpable.
Versatile plate and screw options
The kit includes:
- L, T, Y, H, orbital rim and straight plates
- Compatible with Ø1.5 mm and Ø2.0 mm self-tapping screws
- Screw lengths from 4 mm to 14 mm
- Color-coded plate and screw system for easy identification
Plate shapes
- Straight plate: standard skull flap reattachment
- Star plate: multi-directional stability for complex fixations
- L-plate: edges of bone and tight corners
- T-plate: trauma and fracture control
- Y-plate: wide coverage for triangular bone sections
- Mesh: a malleable plate for the reconstruction of large areas or defects
- Burr hole covers: cosmetic and protective closure of burr sites
Secure screw retention
The aggressive Power Grip self-drilling screws purchase the bone readily for easy application by hand or power driver, providing optimum retention. Excellent retention between screw head and screwdriver blade makes for fast, reliable operation every time.
Complete surgical set
Includes ergonomic instruments, depth gauge, screwdriver and bending tools, all housed in a sterilizable tray, ready for the OR. Designed for efficiency, repeatability and reduced downtime between cases.
Specifications.
- Plate thickness0.3 mm to 0.6 mm
- ScrewsØ1.5 mm and Ø2.0 mm self-tapping, 4 mm to 14 mm
- MaterialTitanium
- Plate shapesStraight, L, T, Y, H, star, mesh, orbital rim, burr hole covers
- SetInstruments, depth gauge, screwdriver and bending tools in a sterilizable tray
