Navientnavigation.

Image-guided surgical navigation for cranial, spine, biopsy and ENT procedures, with no consumables.

Downloads

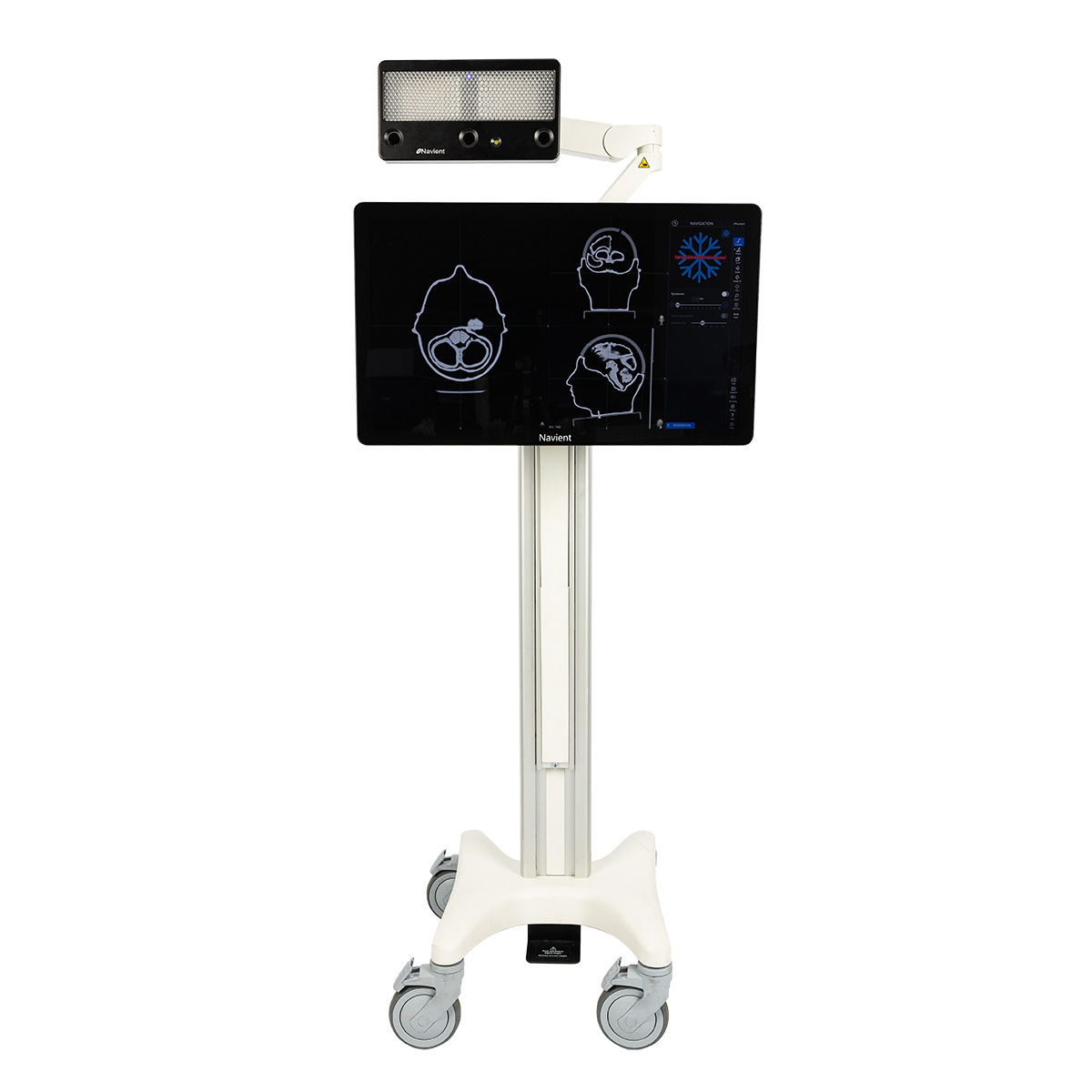

Navient surgical navigation cart with touchscreen and tracking camera

Fast registration.

Automatic fiducial, landmark and trace-based registration completes in under a minute.

No consumables.

Pre-calibrated, steam-sterilizable probes with permanent markers; nothing to reorder.

Accurate tracking.

Infrared optical tracking with 0.2 mm calibration accuracy and tip verification.

Know exactly where you are.

In cranial, ENT and spinal surgery, healing starts with confidence: knowing exactly where you are, every step of the way. Navient is an image-guided navigation system that keeps surgical navigation simple, accurate and affordable. It helps surgeons navigate complex anatomy with clarity and control, reducing risk, protecting critical structures and supporting safer, more precise procedures. When surgeons have tools that let them perform at their best, patients recover faster, with fewer complications and better outcomes.

Simple, accurate and affordable

Navient is designed for convenient routine use. There are no cables to connect, no spherical markers to mount, no field generator to place and no consumables to order. Its interface is easy to learn, it fits into existing OR setups, and it takes little time to set up.

From ENT and cranial procedures to spinal and neurosurgical applications, one adaptable platform accommodates a range of instruments and procedures, and it operates without continuous radiation.

Cranial, biopsy, ENT and spine procedures
Sleek, compact and portable cart
Large touchscreen for natural interaction
Powerful and intuitive software
Pre-calibrated navigation probes
Fast registration and precise navigation
Affordable, with no consumables

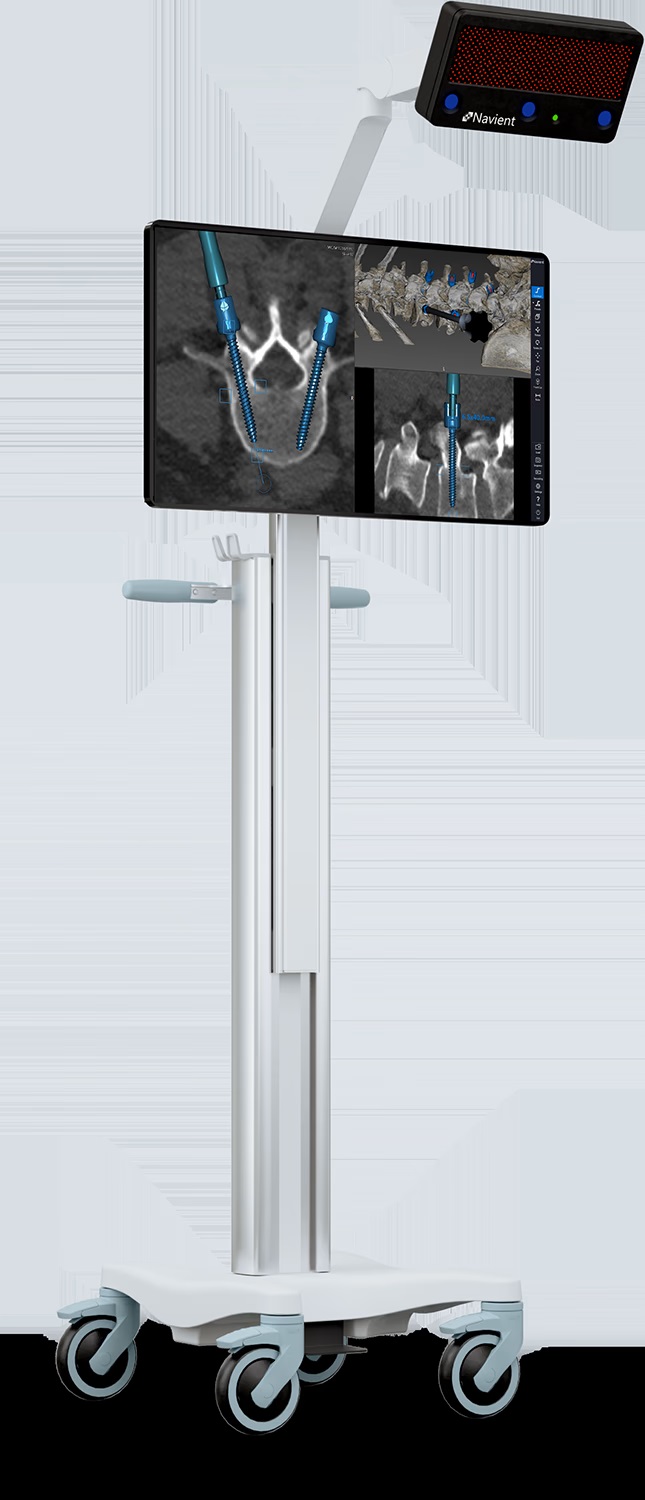

Navient cart showing pedicle screw navigation

Fast registration

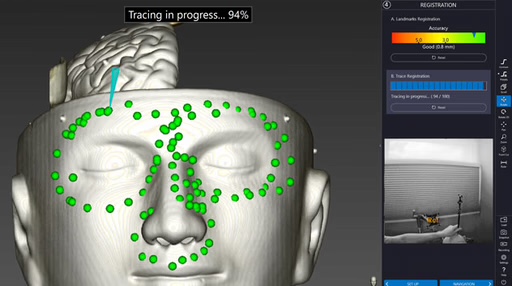

Navient's registration is simple, accurate and fast. It detects multimodal fiducials for automatic registration and also allows the use of anatomical landmarks for manual registration. Trace-based registration then fine-tunes the result for higher accuracy. The process takes less than a minute to complete.

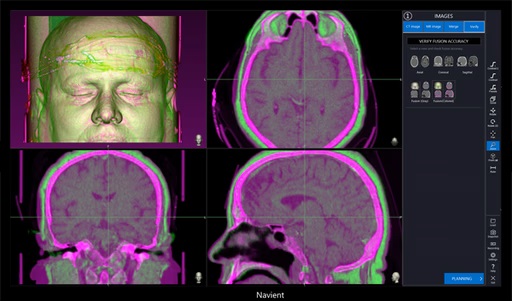

Navient software: verifying fusion accuracy

Ergonomic, reusable instruments

Pre-calibrated navigation probes are equipped with permanent markers, and universal trackers clamp to any surgical instrument, such as a biopsy needle, pedicle screwdriver, drill or suction. All navigation instruments are steam sterilizable, so there are no consumables.

Cranial set: articulated arm, two cranial reference frames, straight probe, registration probe, tip calibrator, microscope probe, sterilization tray
Biopsy set: articulated arm, dual adaptor, biopsy aiming device, biopsy probe, 2.2 mm reducing tube, sterilization tray
Spine set: percutaneous surgery unit, clamp tool handle, universal trackers, patient reference frame, mini articulated arm, navigated awl, registration probe, tip calibrator, C-clamps, sterilization tray
ENT set: bayonet probe, registration probe, maxillary and frontal seekers, universal tracker, patient tracker, tip calibrator, C-clamps, sterilization tray

Tracking system

Infrared optical tracking system
0.2 mm calibration accuracy
Live video stream
Instrument tip accuracy verification
Permanent markers
Reusable and sterilizable instruments
Foldable tracker arm with variable height

Software

For cranial, ENT and spine procedures
Loads DICOM images from DVD, USB or PACS
Image fusion

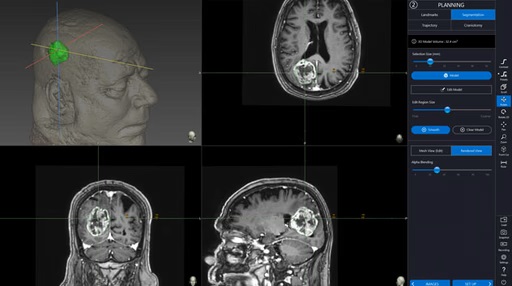

Automatic segmentation and 3D modeling
Virtual craniotomy
Biopsy trajectory planning and navigation
Pre-op and intra-op pedicle screw planning
Landmark and trace registration
Automatic registration using intra-op CT and C-arm
Anatomical, trajectory and probe-eye views
Video documentation of the operation

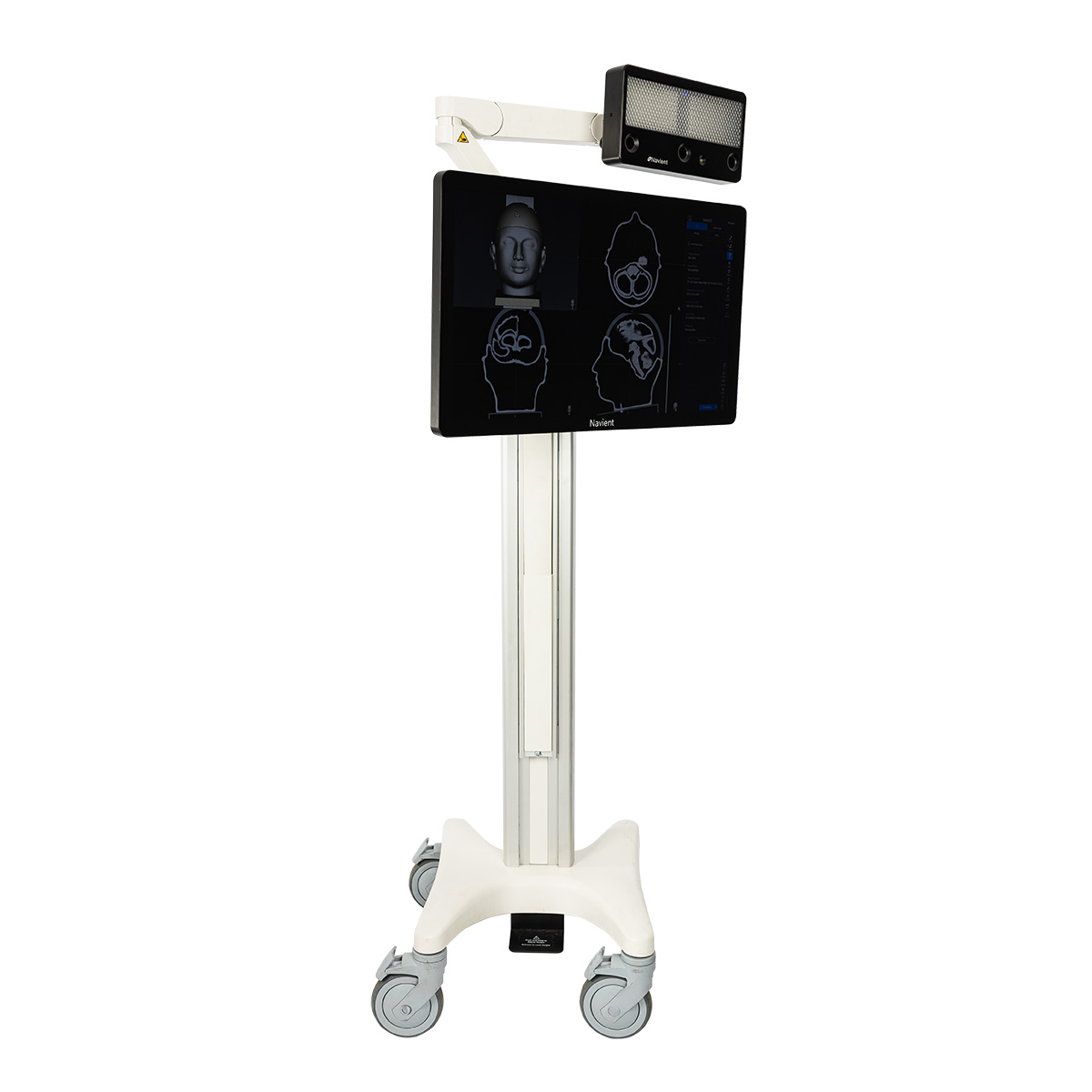

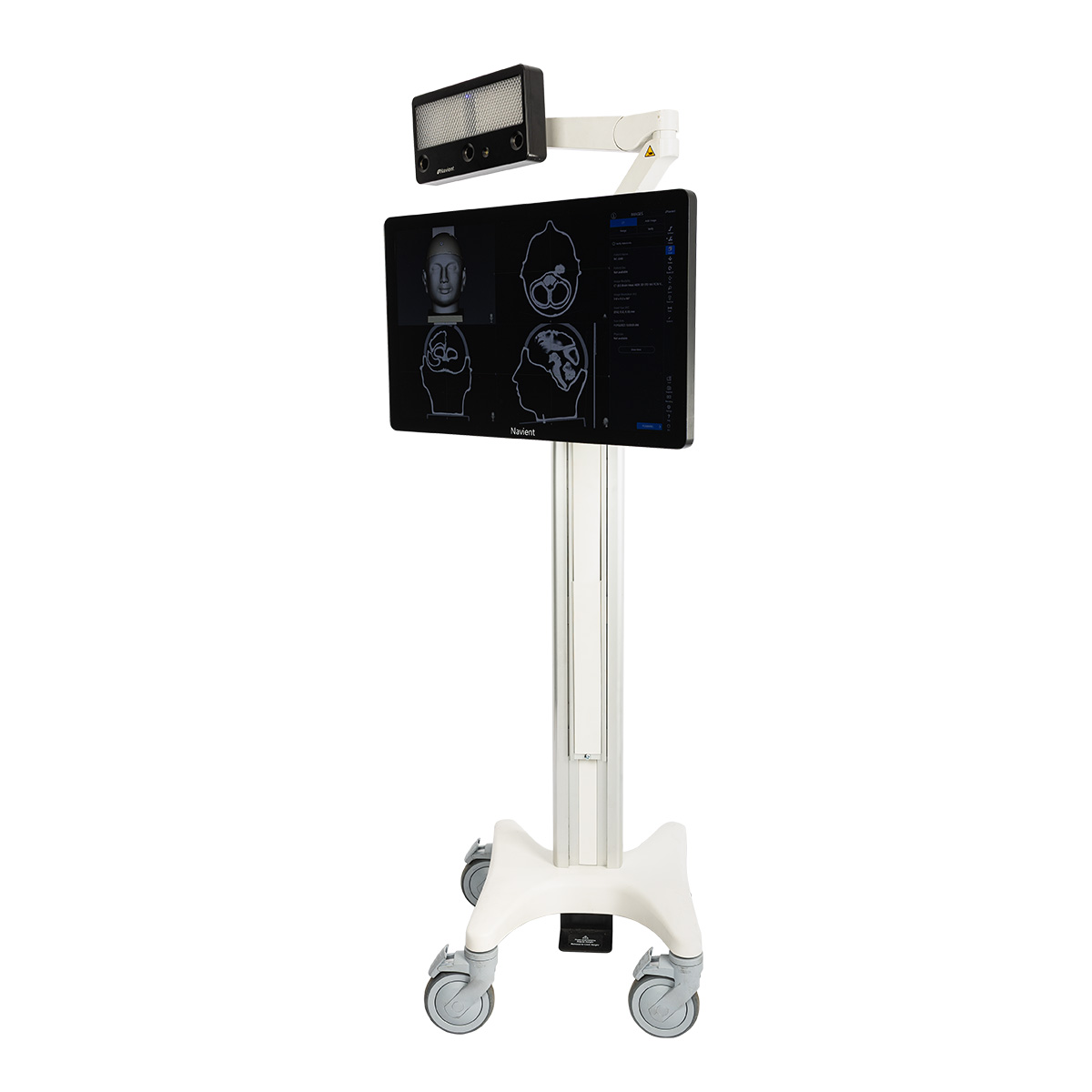

All-in-one computer and cart

27-inch WQHD ultra-bright touchscreen with ultra-thin bezel, glass front and stainless steel back
Lightweight, thin and easily detachable display on an adjustable tilt, swivel and rotation mount
Intel Core i7 quad-core processor, 32 GB DDR4 RAM, 1 TB NVMe SSD, Nvidia GeForce RTX 3070 graphics
Lightweight cart: 30 kg
Small footprint: 40 (W) x 50 (D) x 135 (H) cm, 190 cm when extended
Omnidirectional wheels with brakes
100 to 240 V, 50/60 Hz, 2.2 A

Specifications.

ProceduresCranial, spine, biopsy and ENT
TrackingInfrared optical, 0.2 mm calibration accuracy
Display27-inch WQHD touchscreen
ImagesDICOM from DVD, USB or PACS; image fusion
Cart30 kg; 40 x 50 x 135 cm (190 cm extended)
Power100 to 240 V, 50/60 Hz, 2.2 A
ConsumablesNone
